04 Configure fortigate to Internet



Maintaining a safe, effective, and compliant network environment requires configuring a FortiGate firewall for internet access. It offers the resources you need to safeguard your network, control traffic, enhance performance, and maintain regulatory compliance.

Using command:

Set name Fortigate:

            config system global

                        set hostname FT-HQ

Set IP

config system interface

            edit port1

                        set mode static

                        set ip 192.168.37.10/24

                        set allowaccess ping https http ssh telnet

                        set role wan

                        set alias WAN

                        end

Configure Route

            config router static

                        edit 1

                                    set dst 0.0.0.0/0

                                        set gateway 192.168.37.2

                                    set device port1

Using Interface

For interface

           Networkg Interfaceg chose Interface for WAN (port1)g Double Click on it

Alias (WAN)g

Role (WAN)g

Addressing mode (Manual)g IP/Netmask 192.168.37.10/255.255.255.0 g

Administrative Accessg IPv4 HTTPS, HTTP, PING, TELNET, SSHg Ok

Network DNS

DNS

            DNS servers (Specify)

            Primary DNS: 8.8.8.8

            Secondary DNS serve 8.8.4.4

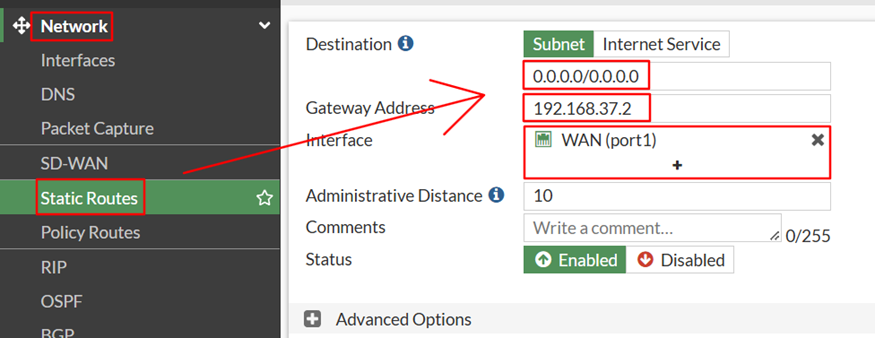

Static Routes

               Create Newg Destination g Subnet 0.0.0.0/0.0.0.0

               Gateway: 192.168.57.2

               Interface: port1 (WAN) g Ok

Testing

               Excecute ping google.com
