Confiugre vpn site to site Fortigate with Mikrotik with multiple vlan



1-Configure fortigate to Internet

2-Configure lan to internet in fortigate

3-Configure VLAN with Cisco switch

Fortigate HQ

We have

               Vlan10: 192.168.10.0/24

Vlan11: 192.168.11.0/24

Vlan12: 192.168.12.0/24

Vlan13: 192.168.13.0/24



MikroTik Brand

We have

               Vlan30: 30.30.30.0/24

Vlan30: 40.40.40.0/24

Vlan30: 50.50.50.0/24

Vlan30: 60.60.60.0/24

1-Configure vpn on fortigate

               Address

               Create group address

               VPN

               Static route

               Firewall

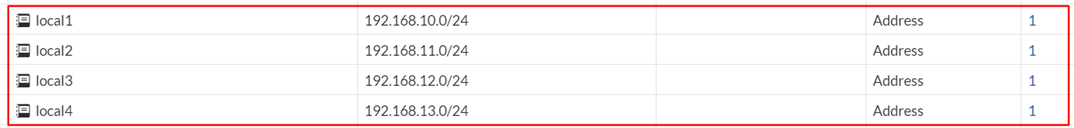

-Address (Create local address and remote address)

               Policy & Objects ðAddress ðCreate New ðAddress

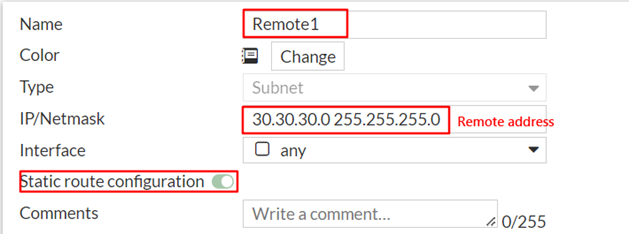

Remote Address (MikroTik Brand)

               Policy & Objects ðAddress ðCreate New ðAddress

-Group (local and Remote)

               Policy & Objects ðAddress ðCreate New ðAddress Group

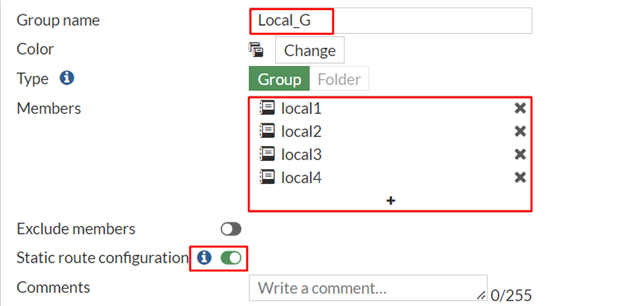

Group local

 Group Remote

VPN

               VPN ðIPsec Wizard ð

Static route

               Network ðStatic Routes ðCreate New ð

Firewall (Allow hq to kpt and kpt to hq)

            Policy & Objects ðFirewall Policy ðCreate New

Ok

Mikrotik Brand

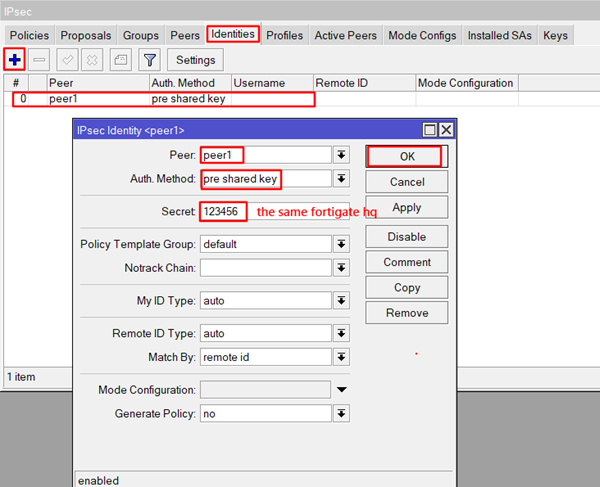

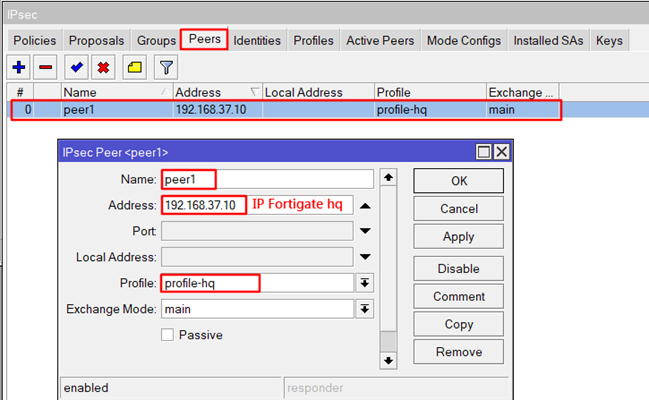

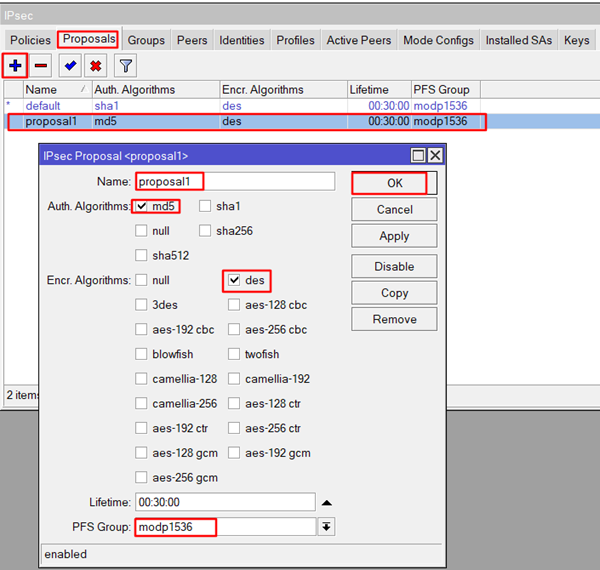

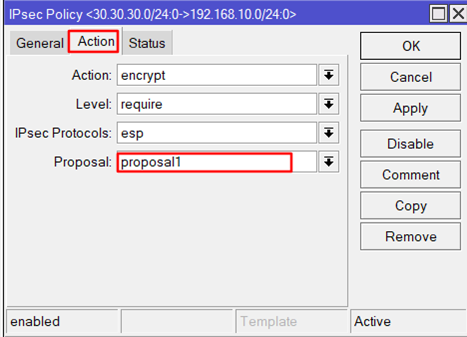

            IP ðIPsec ðProfile ð+

Configure NAT

            IP ðFirewall ðNat

Now all vlan Fortigate(hq) and MikroTik(brand) can access others and test ping
