1-Configure fortigate to Internet
2-Configure lan to internet in fortigate
3-Configure VLAN with Cisco switch
Configure on HQ
So now
for WAN and LAN we configure done and document we show on only
OSPF Configuration full configuration watch on Videos
WAN IP: 192.168.37.10/24
LAN and Vlan IP: 192.168.10.0/24
SiteA IP: 10.10.10.1/30
SiteB IP: 20.20.20.1/30

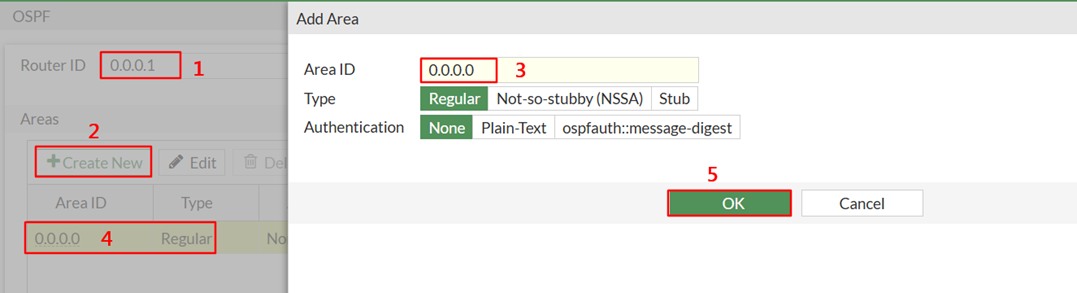

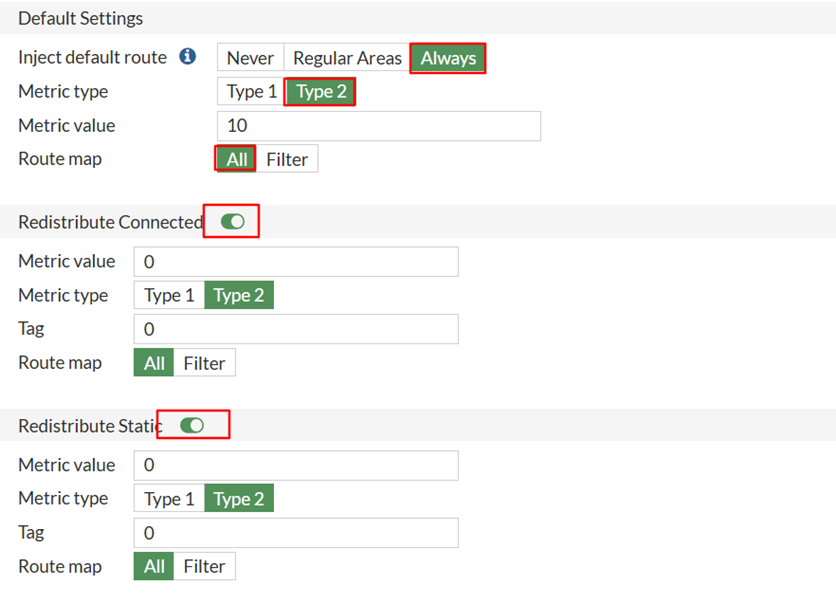

Configure OSPF
Network ðOSPF
Apply
Allow Site A and B to internet in HQ

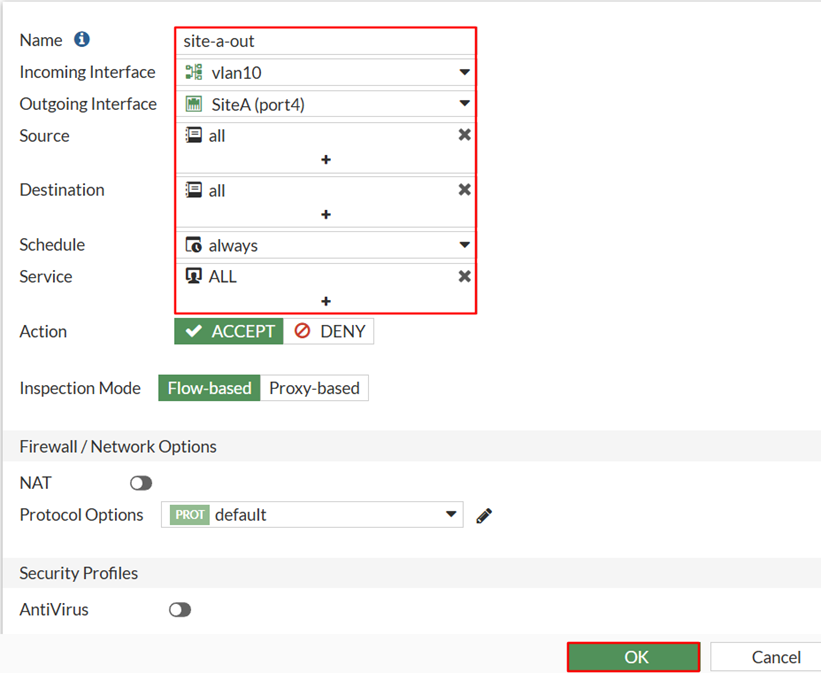

Allow SiteA access to LAN HQ and HQ to SiteA (in firewall
HQ)
Allow SiteB access to LAN HQ and HQ to SiteB (in
firewall HQ)
Do the same site A
Configure SiteA access to SiteB and SiteB to SiteA (HQ Routor
On HQ done
Configure Cisco Switch HQ
1-Configure trunk port
Switch>enable
Switch#configure terminal
Switch(config)#
Switch(config)#interface
range gigabitEthernet 0/0-1
Switch(config-if-range)#channel-group 1 mode active
Switch(config-if-range)#no shutdown
Switch(config-if-range)#end
Switch#show interfaces status
Switch(config)#int po1
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport mode trunk
Switch(config-if)#no shutdown
Switch(config-if)#end
Switch#wr
2)Configure port access vlan
Switch(config)#int rang g0/2-3
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch#wr
=======================================
Now we
go to configure SiteA and B
Configure on SiteA
So now
for WAN and LAN we configure done and document we show on only
OSPF Configuration full configuration watch on Videos
Management Prot IP: 192.168.37.11/24
To HQ IP: 10.10.10.2/30
LAN and Vlan IP: 192.168.20.0/24
SiteA IP: 10.10.10.2/30
Configure
OSPF on SiteA
Network ðInterface ðOSPF
Apply
Configure Policy & Object on SiteA
Policy &
Object ðFirewall Policy ðCreate New
HQ to LAN
LAN To HQ
Configure Cisco Switch Site A
1-Configure trunk port
Switch>enable
Switch#configure terminal
Switch(config)#
Switch(config)#interface
range gigabitEthernet 0/0-1
Switch(config-if-range)#channel-group 1 mode active
Switch(config-if-range)#no shutdown
Switch(config-if-range)#end
Switch#show interfaces status
Switch(config)#int po1
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport mode trunk
Switch(config-if)#no shutdown
Switch(config-if)#end
Switch#wr
2)Configure port access vlan
Switch(config)#int rang g0/2-3
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#no shutdown
Switch(config-if)#exit
Switch#wr
=============================================
Configure
Fortgate Site B
Configure
OSPF

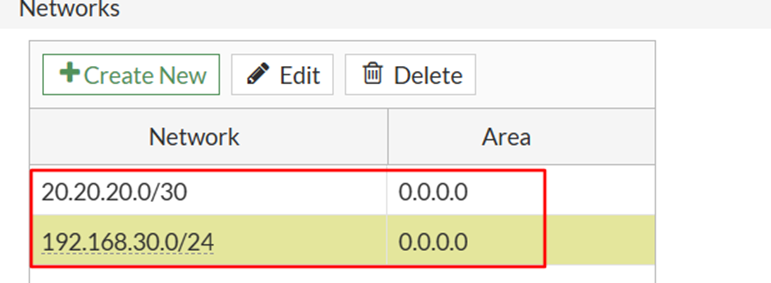

Network ðOSPF
Configure
Policy & Objects (Site A)
Policy &
Object ðFirewall Policy

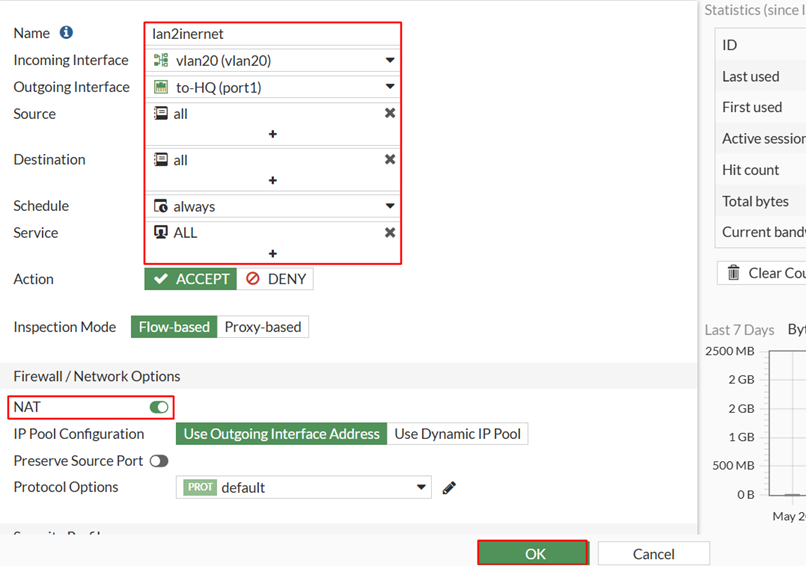

LAN to Internet

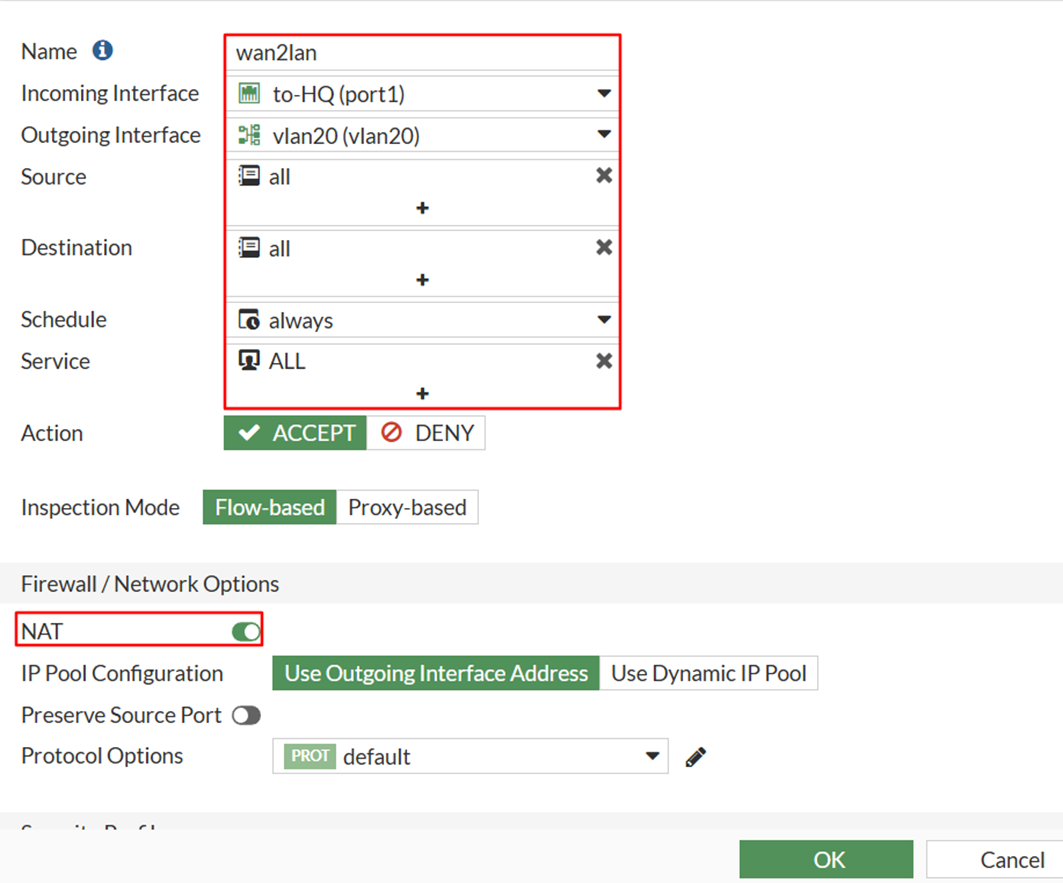

WAN to LAN
